ML-1102

ML-1102

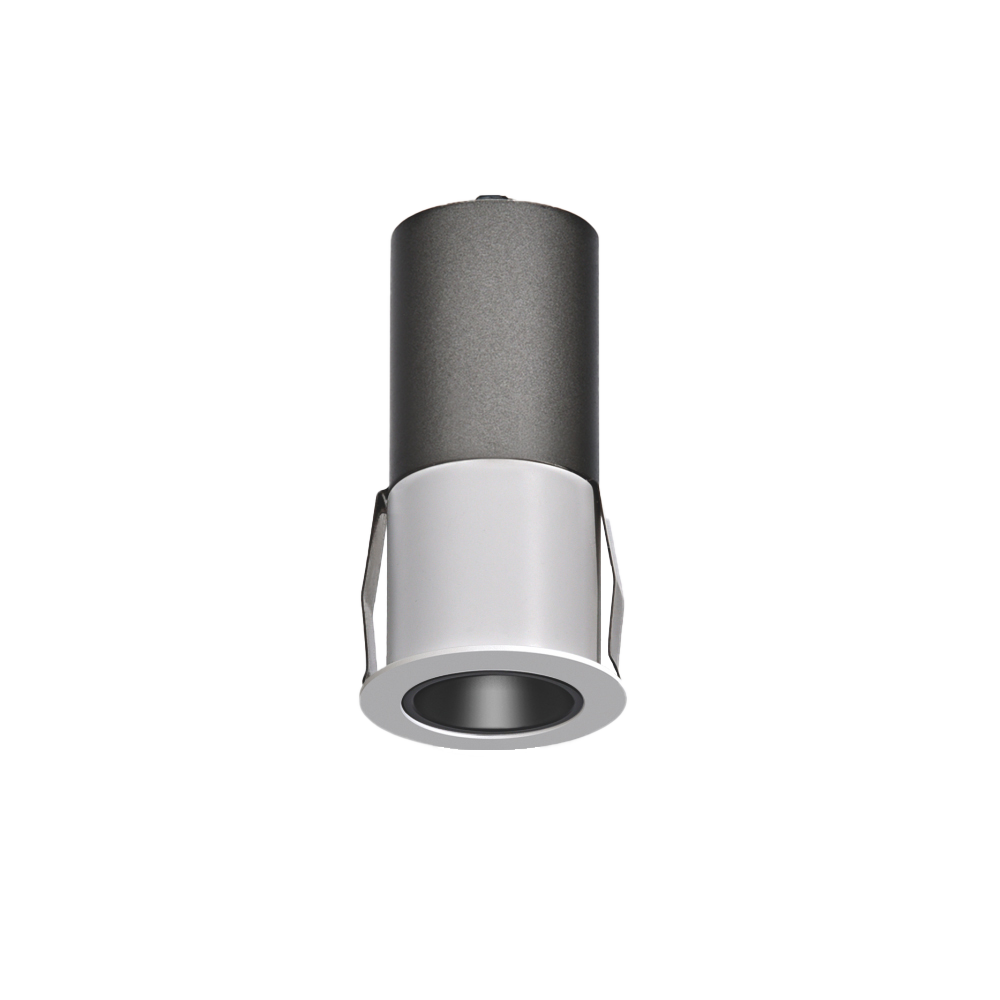

Compact design with wide range waffage options 3W-12W, Module design and combined for a wide range installation way-Embedded, Recessed, ajustable spothead, The Led Downlights is with high quality cob and driver to ensure 3 Years warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

Data sheet

SPECIFICATIONS

Dimension

LED Power

Lumens

Ceiling Cut Out

φ33 x 55
3W
121LM
φ30mm
φ41 x 70
5.5W
382LM
φ38mm
φ49 x 80
9W
677LM
φ45mm
φ33 x 88.5
6W
261LM
φ30mm
φ41 x 105
7.5W
517LM
φ38mm
φ49 x 110
12W
890LM
φ45mm

Finish

Textured Black
TexturedWhite

LED CCT

2700K
3000K
4000K
2700K-6500K (TunableWhite)
3000K-1800K (Dusk Dimming)

Key Information

Material: Aluminium

Driver: Lifud

Lifetime: 35,000h

CRI: >80, >90

APPLICATION

Product application in Store Lighting, Mall Lighting
